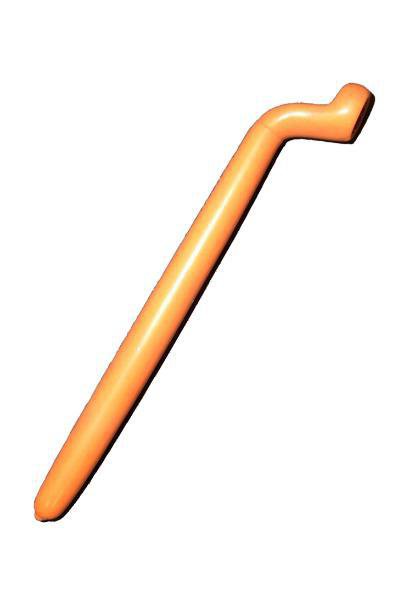

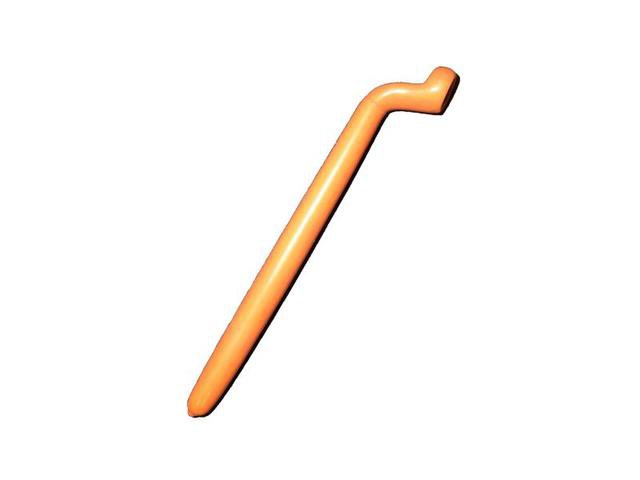

Insulated Ring Wrenches

The King Dick range of insulated ring wrenches are designed
for electrical live line working, and manufactured
in accordance with the DIN EN 60900 and IEC 900 standards

Made for current carrying work (as per VDE 0680) to a
maximum of 1000volt a.c. and 1500volt d.c

Available in:
AF 1/4" to 1"
Metric 6mm to 32mm
Whitworth 1/8" to 3/4" W

Insulated Ring Wrenches - AF Insulated Ring Wrenches

Part Code	Description	Price	D1 (mm)	D2 (mm)	Length (mm)	Weight (g)
INS RA 208	Insulated Ring Wrenches - AF 1/4"	£20.50	20	N/A	125	70
INS RA 210	Insulated Ring Wrenches - AF 5/16"	£20.50	20	N/A	125	70
INS RA 212	Insulated Ring Wrenches - AF 3/8"	£21.35	20	N/A	125	70
INS RA 213	Insulated Ring Wrenches - AF 7/16"	£21.35	20	N/A	125	70
INS RA 214	Insulated Ring Wrenches - AF 1/2"	£22.24	25	N/A	145	85
INS RA 218	Insulated Ring Wrenches - AF 9/16"	£25.62	25	N/A	150	85
INS RA 219	Insulated Ring Wrenches - AF 5/8"	£30.73	27	N/A	175	120
INS RA 220	Insulated Ring Wrenches - AF 11/16"	£32.63	27	N/A	175	120
INS RA 224	Insulated Ring Wrenches - AF 3/4"	£32.63	32	N/A	200	195
INS RA 228	Insulated Ring Wrenches - AF 7/8"	£36.94	42	N/A	240	245
INS RA 230	Insulated Ring Wrenches - AF 1"	£42.06	45	N/A	265	300

Insulated Ring Wrenches - Metric Insulated Ring Wrenches

Part Code	Description	Price	D1 (mm)	D2 (mm)	Length (mm)	Weight (g)
INS R06	Insulated Ring Wrenches - Metric 6mm	£20.50	15	N/A	110	42
INS R07	Insulated Ring Wrenches - Metric 7mm	£20.50	15	N/A	110	42
INS R08	Insulated Ring Wrenches - Metric 8mm	£20.50	15	N/A	110	42
INS R09	Insulated Ring Wrenches - Metric 9mm	£20.50	18	N/A	125	50
INS R10	Insulated Ring Wrenches - Metric 10mm	£21.35	18	N/A	125	50
INS R11	Insulated Ring Wrenches - Metric 11mm	£21.35	25	N/A	150	85
INS R12	Insulated Ring Wrenches - Metric 12mm	£22.24	25	N/A	150	85
INS R13	Insulated Ring Wrenches - Metric 13mm	£22.24	25	N/A	150	85
INS R14	Insulated Ring Wrenches - Metric 14mm	£25.62	25	N/A	150	85
INS R15	Insulated Ring Wrenches - Metric 15mm	£28.05	30	N/A	185	150
INS R16	Insulated Ring Wrenches - Metric 16mm	£30.73	30	N/A	185	150
INS R17	Insulated Ring Wrenches - Metric 17mm	£30.73	30	N/A	185	150
INS R18	Insulated Ring Wrenches - Metric 18mm	£32.63	30	N/A	185	150
INS R19	Insulated Ring Wrenches - Metric 19mm	£32.63	32	N/A	200	195
INS R20	Insulated Ring Wrenches - Metric 20mm	£36.94	32	N/A	200	195
INS R21	Insulated Ring Wrenches - Metric 21mm	£36.94	32	N/A	200	195
INS R22	Insulated Ring Wrenches - Metric 22mm	£36.94	35	N/A	215	245
INS R23	Insulated Ring Wrenches - Metric 23mm	£42.06	30	N/A	215	245
INS R24	Insulated Ring Wrenches - Metric 24mm	£42.06	42	N/A	240	290
INS R25	Insulated Ring Wrenches - Metric 25mm	£42.06	42	N/A	240	290
INS R26	Insulated Ring Wrenches - Metric 26mm	£45.97	42	N/A	240	290
INS R27	Insulated Ring Wrenches - Metric 27mm	£45.97	42	N/A	240	290
INS R28	Insulated Ring Wrenches - Metric 28mm	£54.20	42	N/A	240	290
INS R30	Insulated Ring Wrenches - Metric 30mm	£54.20	42	N/A	240	290
INS R32	Insulated Ring Wrenches - Metric 32mm	£54.74	42	N/A	240	290

Insulated Ring Wrenches - Whitworth Insulated Ring Wrenches

Part Code	Description	Price	D1 (mm)	D2 (mm)	Length (mm)	Weight (g)
INS RW 602	Insulated Ring Wrenches - Whitworth 1/8"W	£20.50	15	N/A	110	85
INS RW 603	Insulated Ring Wrenches - Whitworth 3/16"W	£22.24	15	N/A	110	85
INS RW 604	Insulated Ring Wrenches - Whitworth 1/4"W	£22.24	15	N/A	110	85
INS RW 605	Insulated Ring Wrenches - Whitworth 5/16"W	£28.05	30	N/A	185	150
INS RW 606	Insulated Ring Wrenches - Whitworth 3/8"W	£32.63	30	N/A	185	150
INS RW 607	Insulated Ring Wrenches - Whitworth 7/16"W	£36.94	35	N/A	215	200
INS RW 608	Insulated Ring Wrenches - Whitworth 1/2"W	£42.06	42	N/A	240	290
INS RW 609	Insulated Ring Wrenches - Whitworth 9/16"W	£45.97	45	N/A	265	300
INS RW 610	Insulated Ring Wrenches - Whitworth 5/8"W	£54.20	50	N/A	290	450
INS RW 611	Insulated Ring Wrenches - Whitworth 11/16"W	£54.20	50	N/A	290	450
INS RW 612	Insulated Ring Wrenches - Whitworth 3/4"W	£57.43	50	N/A	290	450
