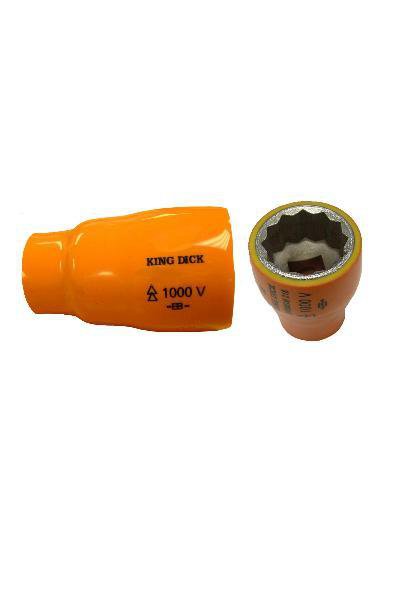

Insulated Sockets
The King Dick range of insulated sockets are designed
for electrical live line working, and manufactured
in accordance with the DIN EN 60900 and IEC 900 standards
Made for current carrying work (as per VDE 0680) to a
maximum of 1000volt a.c. and 1500volt d.c
Available in:
1/4" SD:
Metric 4mm to 14mm
3/8" SD:
AF 1/4" to 7/8"
Metic 6mm to 22mm
Whitworth 1/8" to 1/2"
1/2" SD:
AF 3/8" to 1 1//4"
Metric standard 8mm to 32mm
Metric deep 10mm, 16mm, 17mm, 19mm, 24mm and 30mm
Whitwoth 1/8" to 3/4"
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| INS HSA 212 |
Insulated 1/2" SD Sockets - AF 3/8" |
£15.32
|
19
|
N/A
|
50
|
67 |
|
| INS HSA 214 |
Insulated 1/2" SD Sockets - AF 7/16" |
£15.32
|
21
|
N/A
|
50
|
70 |
|
| INS HSA 216 |
Insulated 1/2" SD Sockets - AF 1/2" |
£15.32
|
23
|
N/A
|
50
|
70 |
|
| INS HSA 218 |
Insulated 1/2" SD Sockets - AF 9/16" |
£15.51
|
23
|
N/A
|
50
|
73 |
|
| INS HSA 220 |
Insulated 1/2" SD Sockets - AF 5/8" |
£15.85
|
27
|
N/A
|
52
|
74 |
|
| INS HSA 222 |
Insulated 1/2" SD Sockets - AF 11/16" |
£15.83
|
28
|
N/A
|
52
|
85 |
|
| INS HSA 224 |
Insulated 1/2" SD Sockets - AF 3/4" |
£15.85
|
32
|
N/A
|
52
|
90 |
|
| INS HSA 226 |
Insulated 1/2" SD Sockets - AF 13/16" |
£17.26
|
33
|
N/A
|
52
|
120 |
|
| INS HSA 228 |
Insulated 1/2" SD Sockets - AF 7/8" |
£17.26
|
35
|
N/A
|
52
|
126 |
|
| INS HSA 230 |
Insulated 1/2" SD Sockets - AF 15/16" |
£18.09
|
36
|
N/A
|
52
|
130 |
|
| INS HSA 232 |
Insulated 1/2" SD Sockets - AF 1" |
£19.33
|
37
|
N/A
|
52
|
158 |
|
| INS HSA 234 |
Insulated 1/2" SD Sockets - AF 1 1/16" |
£19.33
|
40
|
N/A
|
55
|
205 |
|
| INS HSA 236 |
Insulated 1/2" SD Sockets - AF 1 1/8" |
£19.33
|
41
|
N/A
|
52
|
207 |
|
| INS HSA 238 |
Insulated 1/2" SD Sockets - AF 1 3/16" |
£19.60
|
44
|
N/A
|
60
|
210 |
|
| INS HSA 240 |
Insulated 1/2" SD Sockets - AF 1 1/4" |
£19.95
|
47
|
N/A
|
52
|
215 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| INS HSM 208 |
Insulated 1/2" SD Sockets - Metric 8mm |
£15.32
|
17
|
N/A
|
50
|
65 |
|
| INS HSM 209 |
Insulated 1/2" SD Sockets - Metric 9mm |
£15.32
|
17
|
N/A
|
50
|
66 |
|
| INS HSM 210 |
Insulated 1/2" SD Sockets - Metric 10mm |
£15.32
|
18
|
N/A
|
50
|
67 |
|
| INS HSM 211 |
Insulated 1/2" SD Sockets - Metric 11mm |
£15.32
|
18
|
N/A
|
50
|
67 |
|
| INS HSM 212 |
Insulated 1/2" SD Sockets - Metric 12mm |
£15.32
|
21
|
N/A
|
50
|
68 |
|
| INS HSM 213 |
Insulated 1/2" SD Sockets - Metric 13mm |
£15.32
|
23
|
N/A
|
50
|
68 |
|
| INS HSM 214 |
Insulated 1/2" SD Sockets - Metric 14mm |
£15.51
|
23
|
N/A
|
50
|
70 |
|
| INS HSM 215 |
Insulated 1/2" SD Sockets - Metric 15mm |
£15.51
|
27
|
N/A
|
50
|
73 |
|
| INS HSM 216 |
Insulated 1/2" SD Sockets - Metric 16mm |
£15.85
|
27
|
N/A
|
50
|
74 |
|
| INS HSM 217 |
Insulated 1/2" SD Sockets - Metric 17mm |
£15.85
|
28
|
N/A
|
50
|
75 |
|
| INS HSM 218 |
Insulated 1/2" SD Sockets - Metric 18mm |
£15.85
|
29
|
N/A
|
50
|
85 |
|
| INS HSM 219 |
Insulated 1/2" SD Sockets - Metric 19mm |
£15.85
|
30
|
N/A
|
50
|
90 |
|
| INS HSM 220 |
Insulated 1/2" SD Sockets - Metric 20mm |
£17.26
|
32
|
N/A
|
52
|
108 |
|
| INS HSM 221 |
Insulated 1/2" SD Sockets - Metric 21mm |
£17.26
|
33
|
N/A
|
52
|
120 |
|
| INS HSM 222 |
Insulated 1/2" SD Sockets - Metric 22mm |
£17.26
|
34
|
N/A
|
53
|
124 |
|
| INS HSM 223 |
Insulated 1/2" SD Sockets - Metric 23mm |
£17.26
|
35
|
N/A
|
54
|
126 |
|
| INS HSM 224 |
Insulated 1/2" SD Sockets - Metric 24mm |
£18.09
|
35
|
N/A
|
55
|
130 |
|
| INS HSM 225 |
Insulated 1/2" SD Sockets - Metric 25mm |
£19.33
|
36
|
N/A
|
56
|
140 |
|
| INS HSM 226 |
Insulated 1/2" SD Sockets - Metric 26mm |
£19.33
|
38
|
N/A
|
57
|
158 |
|
| INS HSM 227 |
Insulated 1/2" SD Sockets - Metric 27mm |
£19.33
|
41
|
N/A
|
52
|
205 |
|
| INS HSM 228 |
Insulated 1/2" SD Sockets - Metric 28mm |
£19.60
|
41
|
N/A
|
59
|
205 |
|
| INS HSM 230 |
Insulated 1/2" SD Sockets - Metric 30mm |
£19.60
|
44
|
N/A
|
59
|
210 |
|
| INS HSM 232 |
Insulated 1/2" SD Sockets - Metric 32mm |
£19.95
|
48
|
N/A
|
61
|
215 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| INS HSW 202 |
Insulated 1/2" SD Sockets - Whitworth 1/8" W |
£15.32
|
17
|
N/A
|
50
|
62 |
|
| INS HSW 203 |
Insulated 1/2" SD Sockets - Whitworth 3/16" W |
£15.32
|
21
|
N/A
|
50
|
66 |
|
| INS HSW 204 |
Insulated 1/2" SD Sockets - Whitworth 1/4" W |
£15.51
|
24
|
N/A
|
50
|
70 |
|
| INS HSW 205 |
Insulated 1/2" SD Sockets - Whitworth 5/16" W |
£15.51
|
27
|
N/A
|
50
|
75 |
|
| INS HSW 206 |
Insulated 1/2" SD Sockets - Whitworth 3/8" W |
£15.83
|
29
|
N/A
|
50
|
82 |
|
| INS HSW 207 |
Insulated 1/2" SD Sockets - Whitworth 7/16" W |
£17.26
|
33
|
N/A
|
52
|
105 |
|
| INS HSW 208 |
Insulated 1/2" SD Sockets - Whitworth 1/2" W |
£17.26
|
35
|
N/A
|
52
|
130 |
|
| INS HSW 209 |
Insulated 1/2" SD Sockets - Whitworth 9/16" W |
£19.33
|
38
|
N/A
|
52
|
160 |
|
| INS HSW 210 |
Insulated 1/2" SD Sockets - Whitworth 5/8" W |
£19.60
|
41
|
N/A
|
57
|
165 |
|
| INS HSW 211 |
Insulated 1/2" SD Sockets - Whitworth 11/16" W |
£19.95
|
44
|
N/A
|
58
|
180 |
|
| INS HSW 212 |
Insulated 1/2" SD Sockets - Whitworth 3/4" W |
£19.95
|
48
|
N/A
|
53
|
215 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| INS HDSM 210 |
Insulated 1/2" SD Sockets Deep - Metric 10mm |
£33.02
|
N/A
|
N/A
|
95
|
80 |
|
| INS HDSM 216 |
Insulated 1/2" SD Sockets Deep - Metric 16mm |
£31.84
|
N/A
|
N/A
|
95
|
117 |
|
| INS HDSM 217 |
Insulated 1/2" SD Sockets Deep - Metric 17mm |
£34.72
|
N/A
|
N/A
|
95
|
140 |
|
| INS HDSM 219 |
Insulated 1/2" SD Sockets Deep - Metric 19mm |
£35.16
|
N/A
|
N/A
|
95
|
151 |
|
| INS HDSM 224 |
Insulated 1/2" SD Sockets Deep - Metric 24mm |
£40.00
|
N/A
|
N/A
|
95
|
235 |
|
| INS HDSM 230 |
Insulated 1/2" SD Sockets Deep - Metric 30mm |
£50.45
|
N/A
|
N/A
|
95
|
380 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| INS ESM 404 |
Insulated 1/4" SD Sockets - Metric 4mm |
£17.02
|
N/A
|
N/A
|
25
|
10 |
|
| INS ESM 4045 |
Insulated 1/4" SD Sockets - Metric 4.5mm |
£17.01
|
N/A
|
N/A
|
40
|
11 |
|
| INS ESM 405 |
Insulated 1/4" SD Sockets - Metric 5mm |
£17.02
|
N/A
|
N/A
|
24
|
11 |
|
| INS ESM 4055 |
Insulated 1/4" SD Sockets - Metric 5.5mm |
£17.01
|
N/A
|
N/A
|
41
|
12 |
|
| INS ESM 406 |
Insulated 1/4" SD Sockets - Metric 6mm |
£17.02
|
N/A
|
N/A
|
25
|
15 |
|
| INS ESM 407 |
Insulated 1/4" SD Sockets - Metric 7mm |
£17.02
|
N/A
|
N/A
|
25
|
12 |
|
| INS ESM 408 |
Insulated 1/4" SD Sockets - Metric 8mm |
£17.02
|
N/A
|
N/A
|
25
|
12 |
|
| INS ESM 409 |
Insulated 1/4" SD Sockets - Metric 9mm |
£17.02
|
N/A
|
N/A
|
25
|
16 |
|
| INS ESM 410 |
Insulated 1/4" SD Sockets - Metric 10mm |
£17.02
|
N/A
|
N/A
|
41
|
18 |
|
| INS ESM 411 |
Insulated 1/4" SD Sockets - Metric 11mm |
£17.02
|
N/A
|
N/A
|
67
|
60 |
|
| INS ESM 412 |
Insulated 1/4" SD Sockets - Metric 12mm |
£17.02
|
N/A
|
N/A
|
24
|
24 |
|
| INS ESM 413 |
Insulated 1/4" SD Sockets - Metric 13mm |
£17.02
|
N/A
|
N/A
|
67
|
75 |
|
| INS ESM 414 |
Insulated 1/4" SD Sockets - Metric 14mm |
£17.02
|
N/A
|
N/A
|
41
|
39 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| INS MSA 208 |
Insulated 3/8" SD Sockets - AF 1/4" |
£17.47
|
22
|
N/A
|
33
|
30 |
|
| INS MSA 210 |
Insulated 3/8" SD Sockets - AF 5/16" |
£17.47
|
22
|
N/A
|
33
|
30 |
|
| INS MSA 212 |
Insulated 3/8" SD Sockets - AF 3/8" |
£17.47
|
22
|
N/A
|
33
|
30 |
|
| INS MSA 214 |
Insulated 3/8" SD Sockets - AF 7/16" |
£17.47
|
22
|
N/A
|
33
|
30 |
|
| INS MSA 216 |
Insulated 3/8" SD Sockets - AF 1/2" |
£17.47
|
25
|
N/A
|
33
|
36 |
|
| INS MSA 218 |
Insulated 3/8" SD Sockets - AF 9/16" |
£17.47
|
25
|
N/A
|
33
|
30 |
|
| INS MSA 220 |
Insulated 3/8" SD Sockets - AF 5/8" |
£17.96
|
25
|
N/A
|
33
|
42 |
|
| INS MSA 222 |
Insulated 3/8" SD Sockets - AF 11/16" |
£17.96
|
25
|
N/A
|
33
|
54 |
|
| INS MSA 224 |
Insulated 3/8" SD Sockets - AF 3/4" |
£17.96
|
28
|
N/A
|
33
|
66 |
|
| INS MSA 226 |
Insulated 3/8" SD Sockets - AF 13/16 |
£20.03
|
29
|
N/A
|
33
|
72 |
|
| INS MSA 228 |
Insulated 3/8" SD Sockets - AF 7/8" |
£20.03
|
32
|
N/A
|
33
|
78 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| INS MSM 206 |
Insulated 3/8" SD Sockets - Metric 6mm |
£17.47
|
22
|
N/A
|
33
|
28 |
|
| INS MSM 207 |
Insulated 3/8" SD Sockets - Metric 7mm |
£17.47
|
22
|
N/A
|
33
|
30 |
|
| INS MSM 208 |
Insulated 3/8" SD Sockets - Metric 8mm |
£17.47
|
22
|
N/A
|
33
|
28 |
|
| INS MSM 209 |
Insulated 3/8" SD Sockets - Metric 9mm |
£17.47
|
22
|
N/A
|
33
|
30 |
|
| INS MSM 210 |
Insulated 3/8" SD Sockets - Metric 10mm |
£17.47
|
22
|
N/A
|
33
|
29 |
|
| INS MSM 211 |
Insulated 3/8" SD Sockets - Metric 11mm |
£17.47
|
22
|
N/A
|
33
|
29 |
|
| INS MSM 212 |
Insulated 3/8" SD Sockets - Metric 12mm |
£17.47
|
22
|
N/A
|
33
|
40 |
|
| INS MSM 213 |
Insulated 3/8" SD Sockets - Metric 13mm |
£17.47
|
22
|
N/A
|
33
|
36 |
|
| INS MSM 214 |
Insulated 3/8" SD Sockets - Metric 14mm |
£17.47
|
22
|
N/A
|
33
|
32 |
|
| INS MSM 215 |
Insulated 3/8" SD Sockets - Metric 15mm |
£17.96
|
22
|
N/A
|
33
|
40 |
|
| INS MSM 216 |
Insulated 3/8" SD Sockets - Metric 16mm |
£17.96
|
24
|
N/A
|
33
|
42 |
|
| INS MSM 217 |
Insulated 3/8" SD Sockets - Metric 17mm |
£17.96
|
24
|
N/A
|
33
|
53 |
|
| INS MSM 218 |
Insulated 3/8" SD Sockets - Metric 18mm |
£17.96
|
27
|
N/A
|
33
|
54 |
|
| INS MSM 219 |
Insulated 3/8" SD Sockets - Metric 19mm |
£17.96
|
27
|
N/A
|
33
|
60 |
|
| INS MSM 220 |
Insulated 3/8" SD Sockets - Metric 20mm |
£20.03
|
29
|
N/A
|
33
|
70 |
|
| INS MSM 221 |
Insulated 3/8" SD Sockets - Metric 21mm |
£20.03
|
30
|
N/A
|
33
|
80 |
|
| INS MSM 222 |
Insulated 3/8" SD Sockets - Metric 22mm |
£20.03
|
32
|
N/A
|
33
|
86 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| INS MSW 202 |
Insulated 3/8" SD Sockets - Whitworth 1/8" W |
£17.47
|
16
|
N/A
|
33
|
30 |
|
| INS MSW 203 |
Insulated 3/8" SD Sockets - Whitworth 3/16" W |
£17.47
|
20
|
N/A
|
33
|
30 |
|
| INS MSW 204 |
Insulated 3/8" SD Sockets - Whitworth 1/4" W |
£17.47
|
24
|
N/A
|
33
|
36 |
|
| INS MSW 205 |
Insulated 3/8" SD Sockets - Whitworth 5/16" W |
£17.96
|
24
|
N/A
|
33
|
39 |
|
| INS MSW 206 |
Insulated 3/8" SD Sockets - Whitworth 3/8" W |
£17.96
|
27
|
N/A
|
33
|
60 |
|
| INS MSW 207 |
Insulated 3/8" SD Sockets - Whitworth 7/16" W |
£20.03
|
30
|
N/A
|
33
|
80 |
|
| INS MSW 208 |
Insulated 3/8" SD Sockets - Whitworth 1/2" W |
£20.03
|
32
|
N/A
|
33
|
88 |
|
