1/2" Square Drive


01675 467 776

1/2" Square Drive

1/2
1/2


Made from EN24 steel for strength, power and reliability
Distinctive black finish for use with any power driver

All drive sizes include a retaining pin and ring facility
for added safety when used with power tools

Made to DIN 3129 and DIN 3121

Available in:
AF standard and deep - 5/16" to 1 1/2"
Metric standard and deep - 8mm to 38mm
Whitworth standard and deep - 1/8" to 7/8"

Please note that some Impact Sockets are dual size marked (eg MM and AF) due to the specified tolerances that these power-use products are made to.

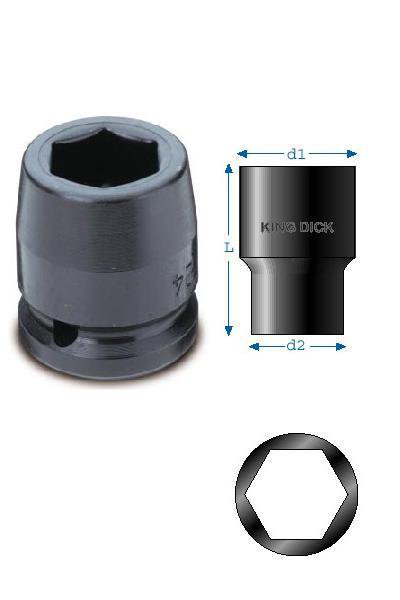

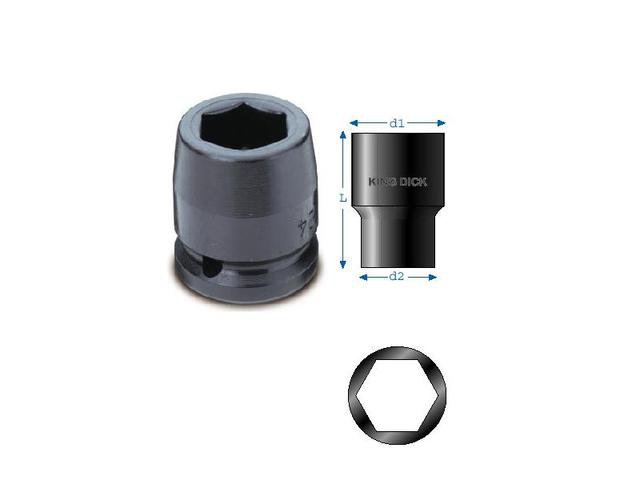

1/2" SD Deep Socket - AF 1/2" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
HDPA 210 1/2" SD Deep Socket - AF 5/16" £13.57 15 22 78 120
HDPA 212 1/2" SD Deep Socket - AF 3/8" £13.57 16 22 78 128
HDPA 214 1/2" SD Deep Socket - AF 7/16" £13.57 18 22 78 138
HDPA 216 1/2" SD Deep Socket - AF 1/2" £13.57 20 22 78 144
HDPA 218 1/2" SD Deep Socket - AF 9/16" £13.57 22 24 78 153
HDPA 220 1/2" SD Deep Socket - AF 5/8" £13.57 24 24 78 174
HDPA 222 1/2" SD Deep Socket - AF 11/16" £13.57 26 26 78 196
HDPA 224 1/2" SD Deep Socket - AF 3/4" £13.57 28 28 78 224
HDPA 226 1/2" SD Deep Socket - AF 13/16" £14.50 30 30 78 250
HDPA 228 1/2" SD Deep Socket - AF 7/8" £15.41 32 32 78 280
HDPA 230 1/2" SD Deep Socket - AF 15/16" £16.64 34 34 78 320
HDPA 232 1/2" SD Deep Socket - AF 1" £18.83 36 36 78 354
HDPA 234 1/2" SD Deep Socket - AF 1 1/16" £18.83 38 38 78 390
HDPA 236 1/2" SD Deep Socket - AF 1 1/8" £19.76 40 38 78 420
HDPA 238 1/2" SD Deep Socket - AF 1 3/16" £21.78 42 38 78 452
HDPA 240 1/2" SD Deep Socket - AF 1 1/4" £24.00 44 38 78 480
HDPA 242 1/2" SD Deep Socket - AF 1 5/16" £25.05 45 38 78 510
HDPA 248 1/2" SD Deep Socket - AF 1 1/2" AF £40.05 52.5 38 78 550

1/2" SD Deep Socket - Metric 1/2" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
HDPM 208 1/2" SD Deep Socket - Metric 8mm £13.57 15 25 78 122
HDPM 209 1/2" SD Deep Socket - Metric 9mm £13.57 16 25 78 128
HDPM 210 1/2" SD Deep Socket - Metric 10mm £13.57 17.5 25 78 135
HDPM 211 1/2" SD Deep Socket - Metric 11mm £13.57 19 25 78 148
HDPM 212 1/2" SD Deep Socket - Metric 12mm £13.57 20 25 78 155
HDPM 213 1/2" SD Deep Socket - Metric 13mm £13.57 21 25 78 159
HDPM 214 1/2" SD Deep Socket - Metric 14mm £13.57 22.5 25 78 170
HDPM 215 1/2" SD Deep Socket - Metric 15mm £13.57 24 30 78 223
HDPM 216 1/2" SD Deep Socket - Metric 16mm £13.57 25 30 78 236
HDPM 217 1/2" SD Deep Socket - Metric 17mm £13.57 26 30 78 242
HDPM 218 1/2" SD Deep Socket - Metric 18mm £13.57 27.5 30 78 252
HDPM 219 1/2" SD Deep Socket - Metric 19mm £13.57 29 30 78 260
HDPM 220 1/2" SD Deep Socket - Metric 20mm £14.57 30 30 78 270
HDPM 221 1/2" SD Deep Socket - Metric 21mm £14.57 30 30 78 278
HDPM 222 1/2" SD Deep Socket - Metric 22mm £14.93 32 30 78 287
HDPM 223 1/2" SD Deep Socket - Metric 23mm £15.66 32 30 78 290
HDPM 224 1/2" SD Deep Socket - Metric 24mm £16.39 35 30 78 330
HDPM 225 1/2" SD Deep Socket - Metric 25mm £17.62 36 30 78 348
HDPM 226 1/2" SD Deep Socket - Metric 26mm £18.11 38 30 78 380
HDPM 227 1/2" SD Deep Socket - Metric 27mm £18.11 39 30 78 390
HDPM 228 1/2" SD Deep Socket - Metric 28mm £19.57 40 30 78 403
HDPM 229 1/2" SD Deep Socket - Metric 29mm £21.78 40 30 78 412
HDPM 230 1/2" SD Deep Socket - Metric 30mm £23.00 42 30 78 425
HDPM 232 1/2" SD Deep Socket - Metric 32mm £23.73 44 30 78 450
HDPM 233 1/2" SD Deep Socket - Metric 33mm £24.96 46.5 30 78 480
HDPM 234 1/2" SD Deep Socket - Metric 34mm £33.89 48 30 78 500
HDPM 236 1/2" SD Deep Socket - Metric 36mm £35.36 50.5 30 78 590

1/2" SD Deep Socket - Whitworth 1/2" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
HDPW 202 1/2" SD Deep Socket - Whitworth 1/8"W £26.30 15 25 78 96
HDPW 203 1/2" SD Deep Socket - Whitworth 3/16"W £26.30 19 25 78 125
HDPW 204 1/2" SD Deep Socket - Whitworth 1/4"W £26.30 20.5 25 78 168
HDPW 205 1/2" SD Deep Socket - Whitworth 5/16"W £26.30 24 25 78 220
HDPW 206 1/2" SD Deep Socket - Whitworth 3/8"W £13.57 27.5 30 78 250
HDPW 207 1/2" SD Deep Socket - Whitworth 7/16"W £15.41 30 30 78 270
HDPW 208 1/2" SD Deep Socket - Whitworth 1/2"W £19.08 34 34 78 310
HDPW 209 1/2" SD Deep Socket - Whitworth 9/16"W £19.08 38 30 78 375
HDPW 210 1/2" SD Deep Socket - Whitworth 5/8"W £19.57 40 30 78 400
HDPW 211 1/2" SD Deep Socket - Whitworth 11/16"W £24.22 43 30 78 422
HDPW 212 1/2" SD Deep Socket - Whitworth 3/4"W £24.96 46.5 30 78 510
HDPW 213 1/2" SD Deep Socket - Whitworth 13/16"W £49.18 50 35 78 580
HDPW 214 1/2" SD Deep Socket - Whitworth 7/8"W £36.28 53 38 78 610

1/2" SD Socket - AF 1/2" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
HPA 210 1/2" SD Socket - AF 5/16" £7.16 15 22 38 64
HPA 212 1/2" SD Socket - AF 3/8" £7.16 16 22 38 64
HPA 214 1/2" SD Socket - AF 7/16" £7.16 18 22 38 64
HPA 216 1/2" SD Socket - AF 1/2" £7.16 20 22 38 64
HPA 218 1/2" SD Socket - AF 9/16" £7.16 22 24 38 72
HPA 220 1/2" SD Socket - AF 5/8" £7.16 25 25 38 80
HPA 222 1/2" SD Socket - AF 11/16" £7.16 26 26 38 90
HPA 224 1/2" SD Socket - AF 3/4" £7.16 28 28 38 102
HPA 226 1/2" SD Socket - AF 13/16" £8.10 30 30 38 118
HPA 228 1/2" SD Socket - AF 7/8" £8.10 32 32 38 130
HPA 230 1/2" SD Socket - AF 15/16" £9.10 34 34 38 152
HPA 232 1/2" SD Socket - AF 1" £10.03 36 36 38 172
HPA 234 1/2" SD Socket - AF 1 1/16" £11.78 38 38 40 210
HPA 236 1/2" SD Socket - AF 1 1/8" £12.53 40 38 40 221
HPA 238 1/2" SD Socket - AF 1 3/16" £15.46 42 38 40 240
HPA 240 1/2" SD Socket - AF 1 1/4" £16.93 44 38 40 251
HPA 242 1/2" SD Socket - AF 1 5/16" £19.01 45 38 43 262
HPA 248 1/2" SD Socket - AF 1 1/2" AF £22.74 52.5 38 50 400

1/2" SD Socket - Metric 1/2" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
HPM 208 1/2" SD Socket - Metric 8mm £7.16 15 25 38 81
HPM 209 1/2" SD Socket - Metric 9mm £7.16 16 25 38 84
HPM 210 1/2" SD Socket - Metric 10mm £7.16 17.5 25 38 86
HPM 211 1/2" SD Socket - Metric 11mm £7.16 19 25 38 89
HPM 212 1/2" SD Socket - Metric 12mm £7.16 20 25 38 91
HPM 213 1/2" SD Socket - Metric 13mm £7.16 21 25 38 96
HPM 214 1/2" SD Socket - Metric 14mm £7.16 22.5 25 38 96
HPM 215 1/2" SD Socket - Metric 15mm £7.16 24 25 38 96
HPM 216 1/2" SD Socket - Metric 16mm £7.16 25 25 38 96
HPM 217 1/2" SD Socket - Metric 17mm £7.16 26 30 38 130
HPM 218 1/2" SD Socket - Metric 18mm £7.16 28 30 38 130
HPM 219 1/2" SD Socket - Metric 19mm £7.16 29 30 38 130
HPM 220 1/2" SD Socket - Metric 20mm £8.07 30 30 38 130
HPM 221 1/2" SD Socket - Metric 21mm £8.07 30 30 38 136
HPM 222 1/2" SD Socket - Metric 22mm £8.07 32 30 38 136
HPM 223 1/2" SD Socket - Metric 23mm £8.56 32 30 38 150
HPM 224 1/2" SD Socket - Metric 24mm £8.56 35 30 45 180
HPM 225 1/2" SD Socket - Metric 25mm £10.03 36 30 45 180
HPM 226 1/2" SD Socket - Metric 26mm £11.29 38 30 50 180
HPM 227 1/2" SD Socket - Metric 27mm £11.74 39 30 50 180
HPM 228 1/2" SD Socket - Metric 28mm £12.48 40 30 50 210
HPM 229 1/2" SD Socket - Metric 29mm £13.63 40 30 50 223
HPM 230 1/2" SD Socket - Metric 30mm £15.46 42 30 50 248
HPM 232 1/2" SD Socket - Metric 32mm £16.93 44 30 50 254
HPM 233 1/2" SD Socket - Metric 34mm £17.60 45 30 50 260
HPM 234 1/2" SD Socket - Metric 33mm £17.26 48 30 50 270
HPM 236 1/2" SD Socket - Metric 36mm £22.75 49 30 50 275
HPM 238 1/2" SD Socket - Metric 38mm £27.65 53 38 50 400

1/2" SD Socket - Whitworth 1/2" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
HPW 202 1/2" SD Socket - Whitworth 1/8"W £19.82 19 25 38 70
HPW 203 1/2" SD Socket - Whitworth 3/16"W £19.82 19 25 38 70
HPW 204 1/2" SD Socket - Whitworth 1/4"W £19.82 20.5 25 38 82
HPW 205 1/2" SD Socket - Whitworth 5/16"W £19.82 24 25 38 90
HPW 206 1/2" SD Socket - Whitworth 3/8"W £13.21 28 30 38 120
HPW 207 1/2" SD Socket - Whitworth 7/16"W £13.21 30 30 38 135
HPW 208 1/2" SD Socket - Whitworth 1/2"W £13.21 34 34 38 160
HPW 209 1/2" SD Socket - Whitworth 9/16"W £13.21 38 30 50 226
HPW 210 1/2" SD Socket - Whitworth 5/8"W £19.82 40 30 50 246
HPW 211 1/2" SD Socket - Whitworth 11/16"W £19.82 43 30 50 256
HPW 212 1/2" SD Socket - Whitworth 3/4"W £19.82 45 30 50 262
HPW 214 1/2" SD Socket - Whitworth 7/8"W £21.90 53 38 50 400
