1" Square Drive

1
1


All King Dick 1" SD sockets and accessories are
drop forged from high grade materials, to precise tolerance, and feature sprung pin retention in the male squares, and corresponding release buttons in the sockets, and accessories.

Machined to exceptional accuracy within
strict controls before precise heat treatment,
King Dick sockets offer durable, reliable and lengthy service.

King Dick hand drive sockets and accessories
have polished and satin finish nickel-chrome plating
for optimum appearance and corrosion resistance.

Made to DIN 3124

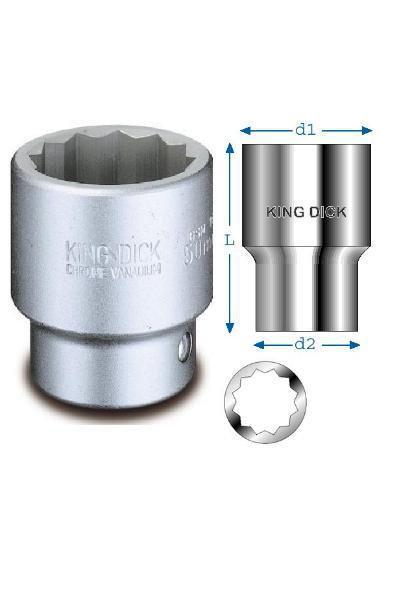

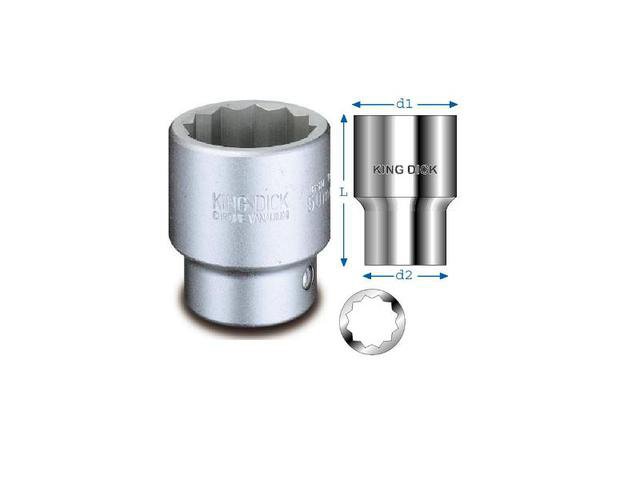

1" SD Sockets - AF (12 point) 1" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GSA 246 1" SD Sockets - AF (12 point) 1 7/16" £51.19 56 51 60 525
GSA 248 1" SD Sockets - AF (12 point) 1 1/2" £51.19 57 51 64 595
GSA 252 1" SD Sockets - AF (12 point) 1 5/8" £58.74 60 51 70 615
GSA 258 1" SD Sockets - AF (12 point) 1 13/16" £63.73 68 54 79 720
GSA 260 1" SD Sockets - AF (12 point) 1 7/8" £67.19 70 54 83 865
GSA 264 1" SD Sockets - AF (12 point) 2" £68.82 75 56 86 950
GSA 272 1" SD Sockets - AF (12 point) 2 1/4" £77.17 83 57 95 1030
GSA 276 1" SD Sockets - AF (12 point) 2 3/8" £89.58 86 60 99 1325
GSA 284 1" SD Sockets - AF (12 point) 2 5/8" £103.66 94 64 108 1540
GSA 288 1" SD Sockets - AF (12 point) 2 3/4" £119.03 97 64 114 1775
GSA 294 1" SD Sockets - AF (12 point) 2 15/16" £134.97 103 67 121 220
GSA 299 1" SD Sockets - AF (12 point) 3 1/8" £145.03 110 67 121 2630

1" SD Sockets - Metric (12 point) 1" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GSM 241 1" SD Sockets - Metric (12 point) 41mm £58.74 60 51 70 615
GSM 246 1" SD Sockets - Metric (12 point) 46mm £63.73 68 54 79 720
GSM 250 1" SD Sockets - Metric (12 point) 50mm £68.82 75 56 86 950
GSM 255 1" SD Sockets - Metric (12 point) 55mm £77.02 81 57 92 1030
GSM 260 1" SD Sockets - Metric (12 point) 60mm £89.04 86 60 99 1325
GSM 265 1" SD Sockets - Metric (12 point) 65mm £102.55 91 60 101 1540
GSM 270 1" SD Sockets - Metric (12 point) 70mm £119.03 97 64 114 1775
GSM 275 1" SD Sockets - Metric (12 point) 75mm £134.97 103 67 121 2200
GSM 280 1" SD Sockets - Metric (12 point) 80mm £145.03 111 67 121 2630

1" SD Sockets - Whitworth (12 point) 1" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GSW 213 1" SD Sockets - Whitworth (12 point) 13/16" W £49.96 52 45 65 475
GSW 214 1" SD Sockets - Whitworth (12 point) 7/8" W £49.96 54 45 65 500
GSW 216 1" SD Sockets - Whitworth (12 point) 1" W £59.46 60 50 70 657
GSW 218 1" SD Sockets - Whitworth (12 point) 1 1/8" W £65.55 67 50 75 856
GSW 220 1" SD Sockets - Whitworth (12 point) 1 1/4" W £71.91 72 55 80 1080
GSW 222 1" SD Sockets - Whitworth (12 point) 1 3/8" W £77.44 77 57 80 1180
GSW 224 1" SD Sockets - Whitworth (12 point) 1 1/2" W £91.27 83 57 87 1380
GSW 226 1" SD Sockets - Whitworth (12 point) 1 5/8" W £101.13 88 57 87 1500
GSW 228 1" SD Sockets - Whitworth (12 point) 1 3/4" W £116.13 95 68 93 2020
GSW 230 1" SD Sockets - Whitworth (12 point) 1 7/8" W £131.68 102 68 103 2240
GSW 232 1" SD Sockets - Whitworth (12 point) 2" W £154.03 105 68 103 2380
