1" Square Drive

1
1


Made from EN24 steel for strength, power and reliability
Distinctive black finish for use with any power driver

All drive sizes include a retaining pin and ring facility
for added safety when used with power tools

Made to DIN 3129 and DIN 3121

Available in:
AF standard and deep - 3/4" to 3 5/8"
Metric standard - 19mm to 105mm
Metric deep - 19mm to 90mm
Whitworth standard and deep - 7/16" to 2"

Please note that some Impact Sockets are dual size marked (eg MM and AF) due to the specified tolerances that these power-use products are made to.



1" SD Deep Socket - AF 1" Square Drive

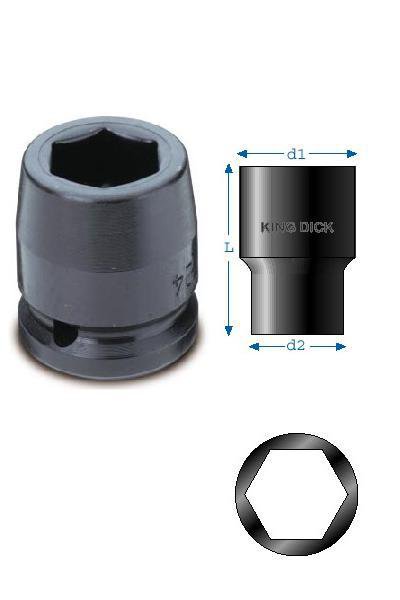

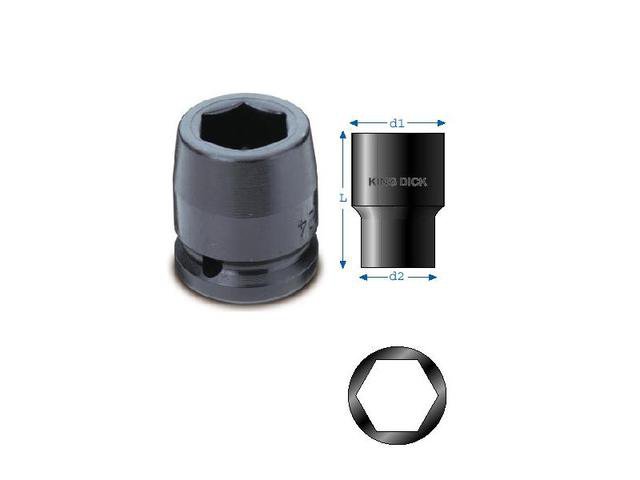

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GDPA 224 1" SD Deep Socket - AF 3/4" £34.50 38.5 54 90 1120
GDPA 226 1" SD Deep Socket - AF 13/16" £34.50 38 54 90 1120
GDPA 228 1" SD Deep Socket - AF 7/8" £34.50 35 54 90 1140
GDPA 230 1" SD Deep Socket - AF 15/16" £34.50 38.5 54 90 1140
GDPA 232 1" SD Deep Socket - AF 1" £34.50 44 54 90 1150
GDPA 234 1" SD Deep Socket - AF 1 1/16" £34.50 44.5 54 90 1200
GDPA 236 1" SD Deep Socket - AF 1 1/8" £34.50 49 54 90 1200
GDPA 238 1" SD Deep Socket - AF 1 3/16" £35.36 50 54 90 1200
GDPA 240 1" SD Deep Socket - AF 1 1/4" £35.36 52.5 54 90 1200
GDPA 242 1" SD Deep Socket - AF 1 5/16" £35.36 54 54 90 1200
GDPA 244 1" SD Deep Socket - AF 1 3/8" £44.04 57 54 90 1200
GDPA 246 1" SD Deep Socket - AF 1 7/16" £53.83 58 54 90 1200
GDPA 248 1" SD Deep Socket - AF 1 1/2" £56.03 59 54 92 1300
GDPA 250 1" SD Deep Socket - AF 1 9/16" £58.92 62 54 92 1300
GDPA 252 1" SD Deep Socket - AF 1 5/8" £60.43 63 54 92 1370
GDPA 254 1" SD Deep Socket - AF 1 11/16" £64.84 66 54 92 1450
GDPA 256 1" SD Deep Socket - AF 1 3/4" £68.32 68 54 92 1450
GDPA 258 1" SD Deep Socket - AF 1 13/16" £68.32 69 68 92 1580
GDPA 260 1" SD Deep Socket - AF 1 7/8" £77.66 72 68 92 1600
GDPA 262 1" SD Deep Socket - AF 1 15/16" £100.32 74 68 92 1650
GDPA 264 1" SD Deep Socket - AF 2" £100.32 76 68 95 1650
GDPA 266 1" SD Deep Socket - AF 2 1/16" £105.21 79 68 95 1800
GDPA 268 1" SD Deep Socket - AF 2 1/8" £114.26 80 68 100 1850
GDPA 270 1" SD Deep Socket - AF 2 3/16" £114.26 84 68 100 1850
GDPA 272 1" SD Deep Socket - AF 2 1/4" £124.78 84 68 100 2100
GDPA 274 1" SD Deep Socket - AF 2 5/16" £135.55 85 68 105 2250
GDPA 276 1" SD Deep Socket - AF 2 3/8" £135.55 88 68 105 2550
GDPA 278 1" SD Deep Socket - AF 2 7/16" £162.02 90 83 110 2800
GDPA 280 1" SD Deep Socket - AF 2 1/2" £162.02 94 83 110 3000
GDPA 282 1" SD Deep Socket - AF 2 9/16" £162.02 94 83 125 3000
GDPA 284 1" SD Deep Socket - AF 2 5/8" £176.90 96 83 125 3200
GDPA 286 1" SD Deep Socket - AF 2 11/16" £190.84 96 83 125 3200
GDPA 288 1" SD Deep Socket - AF 2 3/4" £190.84 103 83 125 3200
GDPA 290 1" SD Deep Socket - AF 2 13/16" £207.97 103 83 125 3330
GDPA 292 1" SD Deep Socket - AF 2 7/8" £210.42 104 102 125 3330
GDPA 294 1" SD Deep Socket - AF 2 15/16" £227.55 110 102 135 3338
GDPA 296 1" SD Deep Socket - AF 3" £254.46 108 102 135 3430
GDPA 298 1" SD Deep Socket - AF 3 1/16" £254.46 114 102 135 3430
GDPA 299 1" SD Deep Socket - AF 3 1/8" £264.25 114 102 135 3470
GDPA 304 1" SD Deep Socket - AF 3 1/4" £337.65 116 102 140 3590
GDPA 308 1" SD Deep Socket - AF 3 3/8" £469.77 120 102 140 3590
GDPA 312 1" SD Deep Socket - AF 3 1/2" £496.69 124 102 140 3710
GDPA 316 1" SD Deep Socket - AF 3 5/8" £523.60 126 102 150 3790

1" SD Deep Socket - Metric 1" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GDPM 219 1" SD Deep Socket - Metric 19mm £34.50 36 54 100 1240
GDPM 220 1" SD Deep Socket - Metric 20mm £34.50 37 54 100 1240
GDPM 221 1" SD Deep Socket - Metric 21mm £34.50 38 54 100 1240
GDPM 222 1" SD Deep Socket - Metric 22mm £34.50 40 54 100 1255
GDPM 223 1" SD Deep Socket - Metric 23mm £34.50 41 54 100 1270
GDPM 224 1" SD Deep Socket - Metric 24mm £34.50 42 54 100 1270
GDPM 225 1" SD Deep Socket - Metric 25mm £34.50 42 54 100 1270
GDPM 226 1" SD Deep Socket - Metric 26mm £34.50 44 54 100 1270
GDPM 227 1" SD Deep Socket - Metric 27mm £34.50 46 54 100 1200
GDPM 228 1" SD Deep Socket - Metric 28mm £34.50 47 54 100 1200
GDPM 229 1" SD Deep Socket - Metric 29mm £34.50 48 54 100 1200
GDPM 230 1" SD Deep Socket - Metric 30mm £35.36 50 54 100 1200
GDPM 232 1" SD Deep Socket - Metric 32mm £35.36 52 54 100 1200
GDPM 233 1" SD Deep Socket - Metric 33mm £35.36 53 54 100 1200
GDPM 234 1" SD Deep Socket - Metric 34mm £37.07 55 54 100 1200
GDPM 235 1" SD Deep Socket - Metric 35mm £44.04 56 54 100 1200
GDPM 236 1" SD Deep Socket - Metric 36mm £44.04 57 54 100 1300
GDPM 237 1" SD Deep Socket - Metric 37mm £53.83 59 54 100 1300
GDPM 238 1" SD Deep Socket - Metric 38mm £56.03 60 54 100 1300
GDPM 239 1" SD Deep Socket - Metric 39mm £56.03 62 54 100 1300
GDPM 240 1" SD Deep Socket - Metric 40mm £58.92 62 54 100 1300
GDPM 241 1" SD Deep Socket - Metric 41mm £58.92 63 54 100 1370
GDPM 242 1" SD Deep Socket - Metric 42mm £60.43 65 54 100 1370
GDPM 243 1" SD Deep Socket - Metric 43mm £64.84 66 54 100 1370
GDPM 246 1" SD Deep Socket - Metric 46mm £68.32 67 54 100 1580
GDPM 248 1" SD Deep Socket - Metric 48mm £88.57 72.5 54 100 1580
GDPM 250 1" SD Deep Socket - Metric 50mm £100.32 75 54 100 1650
GDPM 252 1" SD Deep Socket - Metric 52mm £105.21 77 54 100 1650
GDPM 254 1" SD Deep Socket - Metric 54mm £114.26 80 54 100 1650
GDPM 255 1" SD Deep Socket - Metric 55mm £114.26 81 54 100 2250
GDPM 260 1" SD Deep Socket - Metric 60mm £135.55 87 54 120 2550
GDPM 265 1" SD Deep Socket - Metric 65mm £162.02 93 54 125 3000
GDPM 270 1" SD Deep Socket - Metric 70mm £190.84 100 54 125 3200
GDPM 275 1" SD Deep Socket - Metric 75mm £207.97 106 86 135 3338
GDPM 280 1" SD Deep Socket - Metric 80mm £265.23 112 86 135 3470
GDPM 285 1" SD Deep Socket - Metric 85mm £393.92 118 86 140 3590
GDPM 290 1" SD Deep Socket - Metric 90mm £423.28 125 86 140 3710

1" SD Deep Socket - Whitworth 1" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GDPW 207 1" SD Deep Socket - Whitworth 7/16"W £34.50 39 54 100 1240
GDPW 208 1" SD Deep Socket - Whitworth 1/2"W £34.50 38.5 54 100 1270
GDPW 209 1" SD Deep Socket - Whitworth 9/16"W £34.50 44 54 100 1270
GDPW 210 1" SD Deep Socket - Whitworth 5/8"W £34.50 44.5 54 100 1200
GDPW 211 1" SD Deep Socket - Whitworth 11/16"W £34.50 50 54 100 1200
GDPW 212 1" SD Deep Socket - Whitworth 3/4"W £34.50 54 54 100 1120
GDPW 213 1" SD Deep Socket - Whitworth 13/16"W £34.50 57 54 100 1120
GDPW 214 1" SD Deep Socket - Whitworth 7/8"W £56.03 59 54 100 1300
GDPW 215 1" SD Deep Socket - Whitworth 15/16"W £58.92 64 54 100 1300
GDPW 216 1" SD Deep Socket - Whitworth 1"W £79.27 64 54 115 1400
GDPW 218 1" SD Deep Socket - Whitworth 1 1/8"W £103.74 69 58 115 1400
GDPW 220 1" SD Deep Socket - Whitworth 1 1/4"W £103.74 79 68 115 1750
GDPW 222 1" SD Deep Socket - Whitworth 1 3/8"W £117.44 84 68 125 2300
GDPW 224 1" SD Deep Socket - Whitworth 1 1/2"W £207.73 90 83 125 2600
GDPW 226 1" SD Deep Socket - Whitworth 1 5/8"W £309.51 94 83 135 3000
GDPW 228 1" SD Deep Socket - Whitworth 1 3/4"W £190.84 103 83 135 3200
GDPW 230 1" SD Deep Socket - Whitworth 1 7/8"W £264.25 110 102 140 3300
GDPW 232 1" SD Deep Socket - Whitworth 2"W £265.23 114 102 140 3470

1" SD Socket - AF 1" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GPA 224 1" SD Socket - AF 3/4" £22.16 38.5 54 58 600
GPA 226 1" SD Socket - AF 13/16" £22.16 38 54 58 600
GPA 228 1" SD Socket - AF 7/8" £22.16 35 54 58 610
GPA 230 1" SD Socket - AF 15/16" £22.16 38.5 54 58 610
GPA 232 1" SD Socket - AF 1" £22.16 44 54 58 610
GPA 234 1" SD Socket - AF 1 1/16" £22.16 44.5 54 58 610
GPA 236 1" SD Socket - AF 1 1/8" £22.16 49 54 58 640
GPA 238 1" SD Socket - AF 1 3/16" £25.18 50 54 60 640
GPA 240 1" SD Socket - AF 1 1/4" £25.18 52.5 54 60 640
GPA 242 1" SD Socket - AF 1 5/16" £25.81 54 54 62 640
GPA 244 1" SD Socket - AF 1 3/8" £25.81 57 54 62 640
GPA 246 1" SD Socket - AF 1 7/16" £27.89 58 54 62 640
GPA 248 1" SD Socket - AF 1 1/2" £30.58 59 54 62 750
GPA 250 1" SD Socket - AF 1 9/16" £30.95 62 54 62 750
GPA 252 1" SD Socket - AF 1 5/8" £31.32 63 54 62 760
GPA 254 1" SD Socket - AF 1 11/16" £36.70 66 54 64 940
GPA 256 1" SD Socket - AF 1 3/4" £37.68 687 54 64 1000
GPA 258 1" SD Socket - AF 1 13/16" £39.64 69 68 64 1000
GPA 260 1" SD Socket - AF 1 7/8" £41.11 72 68 66 1030
GPA 262 1" SD Socket - AF 1 15/16" £50.16 74 68 68 1030
GPA 264 1" SD Socket - AF 2 £52.12 76 68 70 1030
GPA 266 1" SD Socket - AF 2 1/16" £58.72 79 68 70 1220
GPA 268 1" SD Socket - AF 2 1/8" £61.41 80 68 70 1360
GPA 270 1" SD Socket - AF 2 3/16" £64.84 84 68 72 1360
GPA 272 1" SD Socket - AF 2 1/4" £66.06 84 68 75 1400
GPA 274 1" SD Socket - AF 2 5/16" £67.53 85 68 75 1590
GPA 276 1" SD Socket - AF 2 3/8" £69.06 88 68 78 1590
GPA 278 1" SD Socket - AF 2 7/16" £83.19 90 83 78 1590
GPA 280 1" SD Socket - AF 2 1/2" £88.08 94 83 80 1800
GPA 282 1" SD Socket - AF 2 9/16" £92.11 94 83 80 1800
GPA 284 1" SD Socket - AF 2 5/8" £107.66 96 83 82 1800
GPA 286 1" SD Socket - AF 2 11/16" £119.89 96 83 82 1800
GPA 288 1" SD Socket - AF 2 3/4" £135.06 103 83 96 1880
GPA 290 1" SD Socket - AF 2 13/16" £141.42 103 83 96 1880
GPA 292 1" SD Socket - AF 2 7/8" £151.31 104 102 96 2700
GPA 294 1" SD Socket - AF 2 15/16" £156.59 110 102 98 2700
GPA 296 1" SD Socket - AF 3" £179.83 108 102 100 3140
GPA 298 1" SD Socket - AF 3 1/16" £179.83 114 102 100 3140
GPA 299 1" SD Socket - AF 3 1/8" £179.83 114 102 100 3140
GPA 304 1" SD Socket - AF 3 1/4" £193.29 116 102 100 3370
GPA 308 1" SD Socket - AF 3 3/8" £225.10 120 102 105 3440
GPA 312 1" SD Socket - AF 3 1/2" £234.89 124 102 105 3650
GPA 316 1" SD Socket - AF 3 5/8" £244.67 126 102 105 3720

1" SD Socket - Metric 1" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GPM 219 1" SD Socket - Metric 19mm £23.00 38.5 54 60 600
GPM 220 1" SD Socket - Metric 20mm £23.00 38.5 54 60 600
GPM 221 1" SD Socket - Metric 21mm £23.00 39 54 60 600
GPM 222 1" SD Socket - Metric 22mm £23.00 38 54 60 600
GPM 223 1" SD Socket - Metric 23mm £23.00 38.5 54 60 600
GPM 224 1" SD Socket - Metric 24mm £23.00 38.5 54 60 620
GPM 225 1" SD Socket - Metric 25mm £23.00 42 54 60 620
GPM 226 1" SD Socket - Metric 26mm £23.00 44 54 60 620
GPM 227 1" SD Socket - Metric 27mm £25.94 44.5 54 60 620
GPM 228 1" SD Socket - Metric 28mm £25.94 47.5 54 60 620
GPM 229 1" SD Socket - Metric 29mm £25.94 49 54 62 640
GPM 230 1" SD Socket - Metric 30mm £25.94 50 54 62 640
GPM 232 1" SD Socket - Metric 32mm £25.94 52.5 54 62 640
GPM 233 1" SD Socket - Metric 33mm £25.94 54 54 62 650
GPM 234 1" SD Socket - Metric 34mm £26.42 54 54 62 650
GPM 235 1" SD Socket - Metric 35mm £26.42 57 54 65 610
GPM 236 1" SD Socket - Metric 36mm £27.65 57 54 67 610
GPM 237 1" SD Socket - Metric 37mm £30.83 58 54 67 610
GPM 238 1" SD Socket - Metric 38mm £30.83 59 54 67 750
GPM 239 1" SD Socket - Metric 39mm £30.83 54 54 70 750
GPM 240 1" SD Socket - Metric 40mm £30.83 54 54 70 750
GPM 241 1" SD Socket - Metric 41mm £30.83 63 54 70 760
GPM 242 1" SD Socket - Metric 42mm £34.25 64 54 74 760
GPM 243 1" SD Socket - Metric 43mm £34.25 64 54 74 760
GPM 246 1" SD Socket - Metric 46mm £39.64 69 54 76 990
GPM 247 1" SD Socket - Metric 47mm £41.35 72 54 76 990
GPM 250 1" SD Socket - Metric 50mm £50.40 76 54 80 1000
GPM 252 1" SD Socket - Metric 52mm £57.99 79 54 84 1000
GPM 254 1" SD Socket - Metric 54mm £59.70 80 54 84 1360
GPM 255 1" SD Socket - Metric 55mm £60.19 82 54 84 1380
GPM 260 1" SD Socket - Metric 60mm £69.06 88 54 87 1620
GPM 265 1" SD Socket - Metric 65mm £94.69 94 54 90 1680
GPM 270 1" SD Socket - Metric 70mm £137.02 103 54 96 1850
GPM 275 1" SD Socket - Metric 75mm £140.20 110 54 98 2900
GPM 280 1" SD Socket - Metric 80mm £172.49 114 86 100 2900
GPM 285 1" SD Socket - Metric 85mm £200.63 120 86 105 2950
GPM 290 1" SD Socket - Metric 90mm £229.99 126 86 105 2950
GPM 295 1" SD Socket - Metric 95mm £243.33 131 86 115 2950
GPM 300 1" SD Socket - Metric 100mm £254.46 137 86 115 2950
GPM 305 1" SD Socket - Metric 105mm £258.13 143 95 115 2950

1" SD Socket - Whitworth 1" Square Drive

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
GPW 207 1" SD Socket - Whitworth 7/16"W £24.22 39 54 60 600
GPW 208 1" SD Socket - Whitworth 1/2"W £24.22 38.5 54 60 650
GPW 209 1" SD Socket - Whitworth 9/16"W £24.22 44 54 60 650
GPW 210 1" SD Socket - Whitworth 5/8"W £25.94 44.5 54 62 620
GPW 211 1" SD Socket - Whitworth 11/16"W £25.94 50 54 62 620
GPW 212 1" SD Socket - Whitworth 3/4"W £25.94 54 54 63 640
GPW 213 1" SD Socket - Whitworth 13/16"W £41.84 57 54 65 650
GPW 214 1" SD Socket - Whitworth 7/8"W £30.34 59 54 65 650
GPW 215 1" SD Socket - Whitworth 15/16"W £33.52 64 54 70 760
GPW 216 1" SD Socket - Whitworth 1"W £36.21 64 54 70 760
GPW 218 1" SD Socket - Whitworth 1 1/8"W £47.22 69 58 75 760
GPW 220 1" SD Socket - Whitworth 1 1/4"W £57.99 79 68 80 1290
GPW 222 1" SD Socket - Whitworth 1 3/8"W £64.72 84 68 85 1410
GPW 224 1" SD Socket - Whitworth 1 1/2"W £73.65 90 83 85 1620
GPW 226 1" SD Socket - Whitworth 1 5/8"W £90.41 94 83 85 1680
GPW 228 1" SD Socket - Whitworth 1 3/4"W £137.02 103 83 85 1850
GPW 230 1" SD Socket - Whitworth 1 7/8"W £154.14 110 102 85 2900
GPW 232 1" SD Socket - Whitworth 2"W £172.49 114 102 90 2900
1" Square Drive Enquiry

If you have a question about our product range, please fill in the form below and we'll get back to you shortly regarding your enquiry.

Please make sure to visit our suppliers page to find a supplier.
