3/4" Square Drive
All King Dick 3/4" SD sockets and accessories are
drop forged from high grade materials, to precise tolerance, and feature sprung pin retention in the male squares, and corresponding release buttons in the sockets, and accessories.
Machined to exceptional accuracy within
strict controls before precise heat treatment,
King Dick sockets offer durable, reliable and lengthy service.
King Dick hand drive sockets and accessories
have polished and satin finish nickel-chrome plating
for optimum appearance and corrosion resistance.
Made to DIN 3124

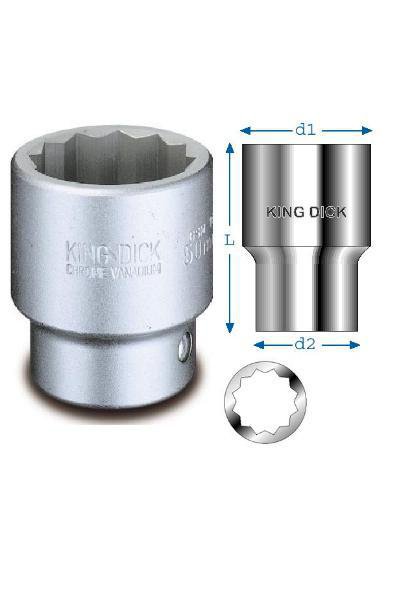

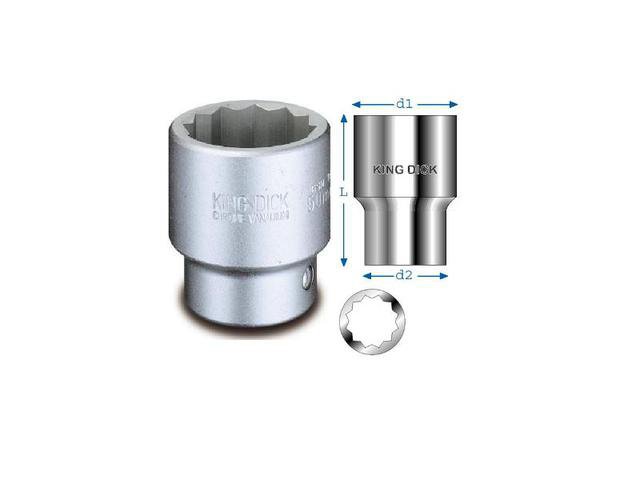

3/4" SD Socket - Metric (12 point) 3/4" Square Drive Chrome Sockets
| Part Code | Description | Price | D1 (mm) | D2 (mm) | Length (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|
| LSM 222 | 3/4" SD Socket - Metric (12 point) 22mm | £17.43 | 30 | 34 | 52 | 195 | |
| LSM 224 | 3/4" SD Socket - Metric (12 point) 24mm | £17.43 | 33 | 34 | 52 | 204 | |
| LSM 227 | 3/4" SD Socket - Metric (12 point) 27mm | £18.06 | 38 | 35 | 54 | 229 | |
| LSM 230 | 3/4" SD Socket - Metric (12 point) 30mm | £21.87 | 42 | 36 | 56 | 281 | |
| LSM 232 | 3/4" SD Socket - Metric (12 point) 32mm | £21.87 | 44 | 37 | 56 | 304 | |
| LSM 233 | 3/4" SD Socket - Metric (12 point) 33mm | £26.29 | 44 | 36 | 56 | 320 | |
| LSM 236 | 3/4" SD Socket - Metric (12 point) 36mm | £29.05 | 50 | 36 | 64 | 430 | |
| LSM 238 | 3/4" SD Socket - Metric (12 point) 38mm | £29.05 | 51 | 36 | 64 | 473 | |
| LSM 241 | 3/4" SD Socket - Metric (12 point) 41mm | £32.06 | 56 | 37 | 64 | 502 | |
| LSM 242 | 3/4" SD Socket - Metric (12 point) 42mm | £34.59 | 58 | 39 | 64 | 562 | |
| LSM 246 | 3/4" SD Socket - Metric (12 point) 46mm | £34.59 | 62 | 40 | 64 | 599 | |
| LSM 250 | 3/4" SD Socket - Metric (12 point) 50mm | £46.74 | 67 | 40 | 64 | 716 | |
| LSM 255 | 3/4" SD Socket - Metric (12 point) 55mm | £57.11 | 74 | 40 | 64 | 806 |
3/4" SD Socket - Whitworth (12 point) 3/4" Square Drive Chrome Sockets
| Part Code | Description | Price | D1 (mm) | D2 (mm) | Length (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|
| LSW 208 | 3/4" SD Socket - Whitworth (12 point) 1/2"W | £17.43 | 32 | 35 | 52 | 195 | |
| LSW 209 | 3/4" SD Socket - Whitworth (12 point) 9/16"W | £18.06 | 37 | 34 | 54 | 210 | |
| LSW 210 | 3/4" SD Socket - Whitworth (12 point) 5/8"W | £25.88 | 40 | 36 | 54 | 256 | |
| LSW 211 | 3/4" SD Socket - Whitworth (12 point) 11/16"W | £21.87 | 43 | 36 | 54 | 281 | |
| LSW 212 | 3/4" SD Socket - Whitworth (12 point) 3/4"W | £26.29 | 44 | 36 | 54 | 320 | |
| LSW 213 | 3/4" SD Socket - Whitworth (12 point) 13/16"W | £29.05 | 49 | 36 | 62 | 430 | |
| LSW 214 | 3/4" SD Socket - Whitworth (12 point) 7/8"W | £29.05 | 52 | 36 | 62 | 473 | |
| LSW 215 | 3/4" SD Socket - Whitworth (12 point) 15/16"W | £32.06 | 58 | 38 | 63 | 502 | |
| LSW 216 | 3/4" SD Socket - Whitworth (12 point) 1"W | £34.59 | 58 | 38 | 65 | 562 | |
| LSW 218 | 3/4" SD Socket - Whitworth (12 point) 1 1/8"W | £42.68 | 63 | 39 | 65 | 658 | |
| LSW 220 | 3/4" SD Socket - Whitworth (12 point) 1 1/4"W | £57.11 | 69 | 39 | 65 | 725 |
3/4" SD Sockets - AF (12 point) 3/4" Square Drive Chrome Sockets
| Part Code | Description | Price | D1 (mm) | D2 (mm) | Length (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|
| LSA 228 | 3/4" SD Sockets - AF (12 point) 7/8" | £17.43 | 32 | 35 | 51 | 195 | |
| LSA 230 | 3/4" SD Sockets - AF (12 point) 15/16" | £17.43 | 33 | 35 | 51 | 204 | |
| LSA 232 | 3/4" SD Sockets - AF (12 point) 1" | £18.06 | 36 | 35 | 51 | 210 | |
| LSA 234 | 3/4" SD Sockets - AF (12 point) 1 1/16" | £18.06 | 38 | 35 | 53 | 229 | |
| LSA 236 | 3/4" SD Sockets - AF (12 point) 1 1/8" | £21.87 | 40 | 35 | 53 | 256 | |
| LSA 238 | 3/4" SD Sockets - AF (12 point) 1 3/16" | £21.87 | 41 | 35 | 55 | 281 | |
| LSA 240 | 3/4" SD Sockets - AF (12 point) 1 1/4" | £21.87 | 44 | 36 | 55 | 304 | |
| LSA 242 | 3/4" SD Sockets - AF (12 point) 1 5/16" | £26.29 | 46 | 36 | 65 | 320 | |
| LSA 244 | 3/4" SD Sockets - AF (12 point) 1 3/8" | £29.05 | 47 | 36 | 65 | 430 | |
| LSA 246 | 3/4" SD Sockets - AF (12 point) 1 7/16" | £29.05 | 48 | 36 | 65 | 440 | |
| LSA 248 | 3/4" SD Sockets - AF (12 point) 1 1/2" | £29.05 | 52 | 36 | 65 | 473 | |
| LSA 250 | 3/4" SD Sockets - AF (12 point) 1 9/16" | £32.06 | 56 | 38 | 65 | 502 | |
| LSA 252 | 3/4" SD Sockets - AF (12 point) 1 5/8" | £32.06 | 58 | 38 | 65 | 510 | |
| LSA 254 | 3/4" SD Sockets - AF (12 point) 1 11/16" | £34.59 | 58 | 38 | 65 | 562 | |
| LSA 256 | 3/4" SD Sockets - AF (12 point) 1 3/4" | £34.59 | 60 | 39 | 65 | 599 | |
| LSA 258 | 3/4" SD Sockets - AF (12 point) 1 13/16" | £34.59 | 62 | 40 | 65 | 649 | |
| LSA 260 | 3/4" SD Sockets - AF (12 point) 1 7/8" | £42.68 | 65 | 40 | 65 | 658 | |
| LSA 264 | 3/4" SD Sockets - AF (12 point) 2" | £46.74 | 67 | 40 | 65 | 716 |
