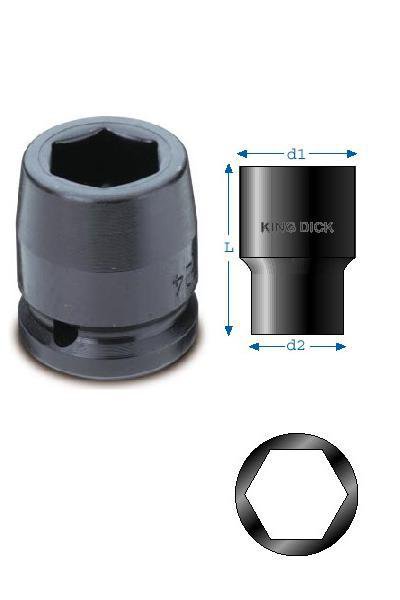

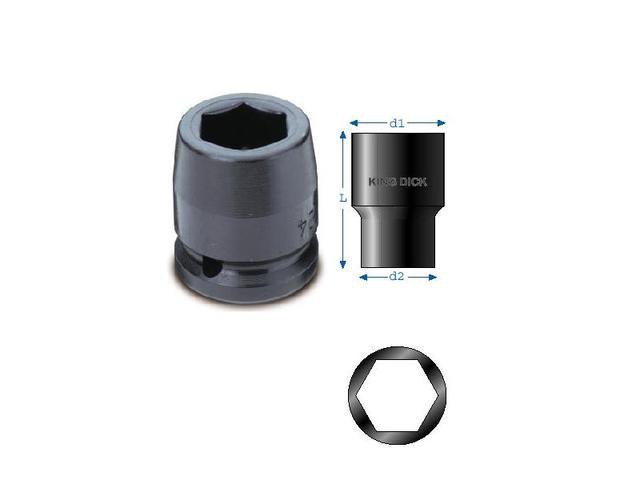

3/8" Square Drive
Made from EN24 steel for strength, power and reliability
Distinctive black finish for use with any power driver
All drive sizes include a retaining pin and ring facility
for added safety when used with power tools
Made to DIN 3129 and DIN 3121
Available in:
AF standard and deep - 1/4" to 15/16"
Metric standard and deep - 6mm to 22mm
Whitworth standard and deep - 1/8" to 1/2"
Please note that some Impact Sockets are dual size marked (eg MM and AF) due to the specified tolerances that these power-use products are made to.
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| MDPA 208 |
3/8" SD Deep Sockets - AF 1/4" |
£12.56
|
11
|
19
|
63
|
72 |
|
| MDPA 210 |
3/8" SD Deep Sockets - AF 5/16" |
£12.56
|
12.5
|
19
|
63
|
74 |
|
| MDPA 212 |
3/8" SD Deep Sockets - AF 3/8" |
£12.56
|
14.5
|
19
|
65
|
74 |
|
| MDPA 214 |
3/8" SD Deep Sockets - AF 7/16" |
£12.56
|
17
|
19
|
65
|
76 |
|
| MDPA 216 |
3/8" SD Deep Sockets - AF 1/2" |
£12.56
|
19
|
19
|
65
|
80 |
|
| MDPA 218 |
3/8" SD Deep Sockets - AF 9/16" |
£12.56
|
20
|
20
|
65
|
86 |
|
| MDPA 220 |
3/8" SD Deep Sockets - AF 5/8" |
£12.56
|
24
|
24
|
65
|
112 |
|
| MDPA 222 |
3/8" SD Deep Sockets - AF 11/16" |
£12.56
|
24
|
24
|
65
|
116 |
|
| MDPA 224 |
3/8" SD Deep Sockets - AF 3/4" |
£13.53
|
26
|
26
|
65
|
140 |
|
| MDPA 226 |
3/8" SD Deep Sockets - AF 13/16" |
£13.53
|
28
|
28
|
65
|
155 |
|
| MDPA 228 |
3/8" SD Deep Sockets - AF 7/8" |
£14.08
|
30
|
30
|
65
|
166 |
|
| MDPA 230 |
3/8" SD Deep Sockets - AF 15/16" |
£15.46
|
32
|
32
|
65
|
216 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| MDPM 207 |
3/8" SD Deep Sockets - Metric 7mm |
£13.25
|
12.5
|
19
|
63
|
68 |
|
| MDPM 208 |
3/8" SD Deep Sockets - Metric 8mm |
£13.25
|
14
|
19
|
63
|
68 |
|
| MDPM 209 |
3/8" SD Deep Sockets - Metric 9mm |
£13.25
|
15
|
19
|
65
|
72 |
|
| MDPM 210 |
3/8" SD Deep Sockets - Metric 10mm |
£13.25
|
16
|
19
|
65
|
74 |
|
| MDPM 211 |
3/8" SD Deep Sockets - Metric 11mm |
£13.25
|
17.5
|
19
|
65
|
80 |
|
| MDPM 212 |
3/8" SD Deep Sockets - Metric 12mm |
£13.25
|
19
|
19
|
65
|
100 |
|
| MDPM 213 |
3/8" SD Deep Sockets - Metric 13mm |
£13.25
|
20
|
22
|
65
|
108 |
|
| MDPM 214 |
3/8" SD Deep Sockets - Metric 14mm |
£13.25
|
21
|
22
|
65
|
110 |
|
| MDPM 215 |
3/8" SD Deep Sockets - Metric 15mm |
£13.25
|
22
|
22
|
65
|
118 |
|
| MDPM 216 |
3/8" SD Deep Sockets - Metric 16mm |
£13.25
|
24
|
22
|
65
|
135 |
|
| MDPM 217 |
3/8" SD Deep Sockets - Metric 17mm |
£13.67
|
25
|
22
|
65
|
137 |
|
| MDPM 218 |
3/8" SD Deep Sockets - Metric 18mm |
£13.67
|
26
|
22
|
65
|
139 |
|
| MDPM 219 |
3/8" SD Deep Sockets - Metric 19mm |
£13.67
|
27.5
|
22
|
65
|
158 |
|
| MDPM 220 |
3/8" SD Deep Sockets - Metric 20mm |
£13.67
|
28
|
22
|
65
|
172 |
|
| MDPM 222 |
3/8" SD Deep Sockets - Metric 22mm |
£14.91
|
32
|
23
|
65
|
200 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| MDPW 202 |
3/8" SD Deep Sockets - Whitworth 1/8"W |
£27.33
|
15
|
19
|
65
|
88 |
|
| MDPW 203 |
3/8" SD Deep Sockets - Whitworth 3/16"W |
£27.33
|
19
|
19
|
65
|
96 |
|
| MDPW 204 |
3/8" SD Deep Sockets - Whitworth 1/4"W |
£27.33
|
20
|
22
|
65
|
102 |
|
| MDPW 205 |
3/8" SD Deep Sockets - Whitworth 5/16"W |
£27.33
|
22
|
22
|
65
|
112 |
|
| MDPW 206 |
3/8" SD Deep Sockets - Whitworth 3/8"W |
£27.33
|
26
|
22
|
65
|
124 |
|
| MDPW 207 |
3/8" SD Deep Sockets - Whitworth 7/16"W |
£27.33
|
30
|
22
|
65
|
180 |
|
| MDPW 208 |
3/8" SD Deep Sockets - Whitworth 1/2"W |
£29.68
|
32
|
22
|
65
|
205 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| MPA 208 |
3/8" SD Sockets - AF 1/4" |
£7.29
|
11
|
19
|
30
|
30 |
|
| MPA 210 |
3/8" SD Sockets - AF 5/16" |
£7.29
|
12.5
|
19
|
30
|
30 |
|
| MPA 212 |
3/8" SD Sockets - AF 3/8" |
£7.29
|
14.5
|
19
|
30
|
32 |
|
| MPA 214 |
3/8" SD Sockets - AF 7/16" |
£7.29
|
17
|
19
|
30
|
34 |
|
| MPA 216 |
3/8" SD Sockets - AF 1/2" |
£7.29
|
19
|
19
|
30
|
36 |
|
| MPA 218 |
3/8" SD Sockets - AF 9/16" |
£7.29
|
20
|
20
|
30
|
37 |
|
| MPA 220 |
3/8" SD Sockets - AF 5/8" |
£7.29
|
24
|
24
|
30
|
51 |
|
| MPA 222 |
3/8" SD Sockets - AF 11/16" |
£8.09
|
24
|
24
|
30
|
58 |
|
| MPA 224 |
3/8" SD Sockets - AF 3/4" |
£8.09
|
26
|
26
|
30
|
60 |
|
| MPA 226 |
3/8" SD Sockets - AF 13/16" |
£8.09
|
28
|
28
|
30
|
64 |
|
| MPA 228 |
3/8" SD Sockets - AF 7/8" |
£8.09
|
30
|
30
|
30
|
68 |
|
| MPA 230 |
3/8" SD Sockets - AF 15/16" |
£10.00
|
32
|
32
|
30
|
80 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| MPM 206 |
3/8" SD Sockets - Metric 6mm |
£7.29
|
11
|
19
|
30
|
36 |
|
| MPM 207 |
3/8" SD Sockets - Metric 7mm |
£7.29
|
12.5
|
19
|
30
|
36 |
|
| MPM 208 |
3/8" SD Sockets - Metric 8mm |
£7.29
|
14
|
19
|
30
|
38 |
|
| MPM 209 |
3/8" SD Sockets - Metric 9mm |
£7.29
|
15
|
19
|
30
|
40 |
|
| MPM 210 |
3/8" SD Sockets - Metric 10mm |
£7.29
|
16
|
19
|
30
|
41 |
|
| MPM 211 |
3/8" SD Sockets - Metric 11mm |
£7.29
|
17.5
|
19
|
30
|
44 |
|
| MPM 212 |
3/8" SD Sockets - Metric 12mm |
£7.29
|
19
|
19
|
34
|
44 |
|
| MPM 213 |
3/8" SD Sockets - Metric 13mm |
£7.29
|
20
|
22
|
30
|
56 |
|
| MPM 214 |
3/8" SD Sockets - Metric 14mm |
£7.29
|
21
|
22
|
30
|
58 |
|
| MPM 215 |
3/8" SD Sockets - Metric 15mm |
£7.29
|
22
|
22
|
30
|
58 |
|
| MPM 216 |
3/8" SD Sockets - Metric 16mm |
£7.29
|
24
|
22
|
30
|
59 |
|
| MPM 217 |
3/8" SD Sockets - Metric 17mm |
£8.09
|
25
|
22
|
30
|
62 |
|
| MPM 218 |
3/8" SD Sockets - Metric 18mm |
£8.09
|
26
|
22
|
30
|
64 |
|
| MPM 219 |
3/8" SD Sockets - Metric 19mm |
£8.09
|
27.5
|
22
|
30
|
64 |
|
| MPM 220 |
3/8" SD Sockets - Metric 20mm |
£8.09
|
28
|
22
|
30
|
67 |
|
| MPM 222 |
3/8" SD Sockets - Metric 22mm |
£9.50
|
32
|
23
|
30
|
82 |
|
| Part Code |
Description |
Price |
D1 (mm) |
D2 (mm) |
Length (mm) |
Weight (g) |
|
| MPW 202 |
3/8" SD Sockets - Whitworth 1/8"W |
£21.53
|
15
|
19
|
30
|
37 |
|
| MPW 203 |
3/8" SD Sockets - Whitworth 3/16"W |
£21.53
|
19
|
19
|
30
|
38 |
|
| MPW 204 |
3/8" SD Sockets - Whitworth 1/4"W |
£21.53
|
20
|
22
|
30
|
44 |
|
| MPW 205 |
3/8" SD Sockets - Whitworth 5/16"W |
£21.53
|
22
|
22
|
30
|
48 |
|
| MPW 206 |
3/8" SD Sockets - Whitworth 3/8"W |
£21.53
|
26
|
22
|
30
|
72 |
|
| MPW 207 |
3/8" SD Sockets - Whitworth 7/16"W |
£27.06
|
30
|
22
|
30
|
90 |
|
| MPW 208 |
3/8" SD Sockets - Whitworth 1/2"W |
£27.06
|
32
|
22
|
30
|
108 |
|
