1/4" SD


01675 467 776

Bit Sockets 1/4" SD

1/4
Bit Sockets 1/4


All King Dick sockets and accessories are
drop forged from high grade materials,
to precise tolerance.

Fixed two part construction allows hardness suitable to
each component for optimum power.


King Dick hand drive sockets and accessories
have polished and satin finish nickel-chrome plating
for optimum appearance and corrosion resistance.

Made to DIN 3124

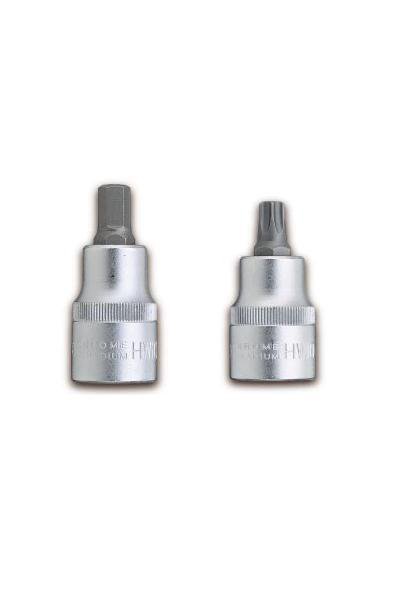

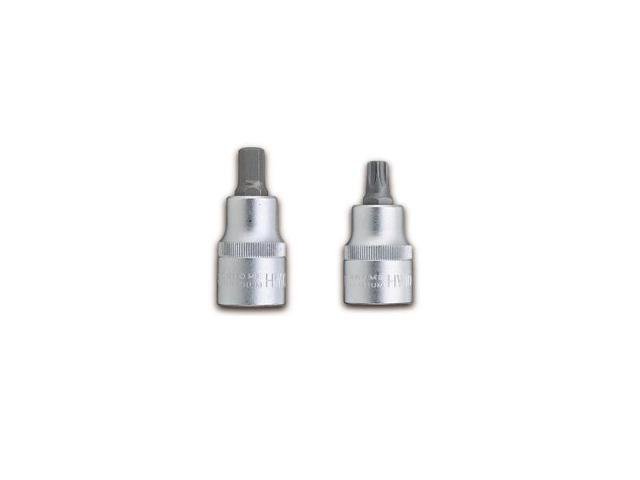

1/4" SD Ins Screwdriver Bit Sockets - AF 1/4" SD

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
ESHA 308 1/4" SD Ins Screwdriver Bit Sockets - AF 1/4" AF £5.53 11 11.8 19.2 10

1/4" SD Ins Screwdriver Bit Sockets - Metric 1/4" SD

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
ESHM 403 1/4" SD Ins Screwdriver Bit Sockets - Metric 3mm £6.22 3 11.9 37.2 14
ESHM 404 1/4" SD Ins Screwdriver Bit Sockets - Metric 4mm £6.22 4 11.9 37.2 14
ESHM 405 1/4" SD Ins Screwdriver Bit Sockets - Metric 5mm £6.22 5 11.9 37.2 15
ESHM 406 1/4" SD Ins Screwdriver Bit Sockets - Metric 6mm £6.22 6 11.9 37.2 15.5
ESHM 407 1/4" SD Ins Screwdriver Bit Sockets - Metric 7mm £6.22 7 11.9 37.2 16
ESHM 408 1/4" SD Ins Screwdriver Bit Sockets - Metric 8mm £6.22 8 11.9 37.2 18
ESHM 6R 1/4" SD Ins Screwdriver Bit Sockets - Metric 3mm - 8mm £37.34 N/A 20 260 136

1/4" SD Ins Screwdriver Bit Sockets - Phillips 1/4" SD

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
ESDPH 401 1/4" SD Ins Screwdriver Bit Sockets - Phillips PH-1 £6.22 1.4 11.8 37.2 14
ESDPH 402 1/4" SD Ins Screwdriver Bit Sockets - Phillips PH-1 £6.22 3 11.8 37.2 14
ESDPH 403 1/4" SD Ins Screwdriver Bit Sockets - Phillips PH-1 £6.22 3.8 11.8 37.2 15
ESDPH 3R 1/4" SD Ins Screwdriver Bit Sockets - Phillips Philips Set PH-1/2/3 £18.66 N/A 20 210 74

1/4" SD Ins Screwdriver Bit Sockets - Pozi 1/4" SD

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
ESDPZ 401 1/4" SD Ins Screwdriver Bit Sockets - Pozi PZ-1 £6.22 2.2 11.8 37.2 14
ESDPZ 402 1/4" SD Ins Screwdriver Bit Sockets - Pozi PZ-2 £6.22 2.4 11.8 37.2 14
ESDPZ 403 1/4" SD Ins Screwdriver Bit Sockets - Pozi PZ-3 £6.22 3.8 11.8 37.2 15
ESDPZ 3R 1/4" SD Ins Screwdriver Bit Sockets - Pozi Pozi Set PZ-1/2/3 £18.66 N/A 20 210 74

1/4" SD Ins Screwdriver Bit Sockets - Slotted 1/4" SD

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
ESDF 404 1/4" SD Ins Screwdriver Bit Sockets - Slotted 4mm £6.22 4 11.8 37.2 13
ESDF 4055 1/4" SD Ins Screwdriver Bit Sockets - Slotted 5.5mm £6.22 5.5 11.8 37.2 14
ESDF 407 1/4" SD Ins Screwdriver Bit Sockets - Slotted 7mm £6.22 7 11.8 37.2 15

1/4" SD Ins Screwdriver Bit Sockets - Torx 1/4" SD

Part Code Description Price D1 (mm) D2 (mm) Length (mm) Weight (g)
EST 10 1/4" SD Ins Screwdriver Bit Sockets - Torx T10 £8.98 2.2 11.8 37.2 13
EST 15 1/4" SD Ins Screwdriver Bit Sockets - Torx T15 £8.98 2.8 11.8 37.2 13
EST 20 1/4" SD Ins Screwdriver Bit Sockets - Torx T20 £8.98 3.3 11.8 37.2 14
EST 25 1/4" SD Ins Screwdriver Bit Sockets - Torx T25 £8.98 3.8 11.8 37.2 14
EST 30 1/4" SD Ins Screwdriver Bit Sockets - Torx T30 £8.98 4.7 11.8 37.2 15
EST 40 1/4" SD Ins Screwdriver Bit Sockets - Torx T40 £8.98 5.7 11.8 37.2 15
EST 6R 1/4" SD Ins Screwdriver Bit Sockets - Torx T10 - T40 £53.93 N/A 11.8 210 116
